HDPE Idler / Return Roller

Description

The new trend of conveying technology, UHMWPE/HDPE Plastic rollers has physical and chemical properties which are high wear resistance, low friction coefficient, not easy to wear leather strap. It also has the fine self lubrication and not easy to card to die in the bad conditions, antistatic, flame retardant, aging resistance, corrosion resistance. It can withstand repeated impact, vibration, mechanical performance is excellent, light weight, easy installation, no maintenance, low noise(3-7DB), smooth operation. The temperature of using keep in -40°C to 85°C.

 Features

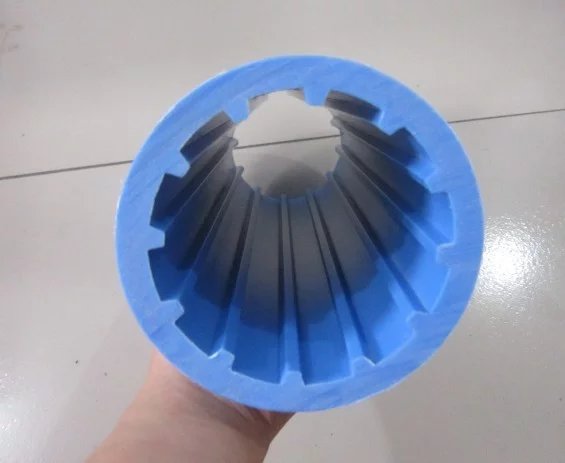

(1) UHMW-PE pipe with Reinforced Skeleton
(2) Light Weight for Power Saving and Worker Safety
(3) Smooth, Noiseless operation
(4) Anti-Alkaline/Anti-Acidic/Anti-Static Formulation
(5) Suitable for Corrosion Environment
(6) Recyclable



The technical parameters of HDPE conveyor roller

Name

Technical parameter

After dropping parameter

Radial moving

0.40-0.50

≤0.70

Axial moving

<0.70

≤1.50

Rotation resistance

1.50-2.50

≤3.75

Axial loading

8.0-10.0

≤10.0

Product Name

89mm conveyor roller belt conveyor carrier roller mining conveyor trough roller

Material

UHMWPE/HDPE

Color

Blue,Red,Black ect

Certification

ISO9001:2008;CE,SGS,FDA

Length

300mm, 380mm, 900mm, 1100mm (Other size on request)

Shaft

Mild steel, 45#Steel & Stainless Steel
